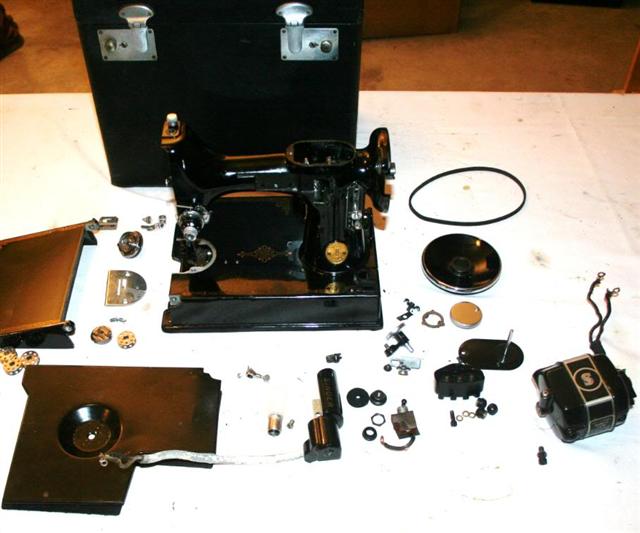

SINGER 221 FEATHERWEIGHT SEWING MACHINE PARTS

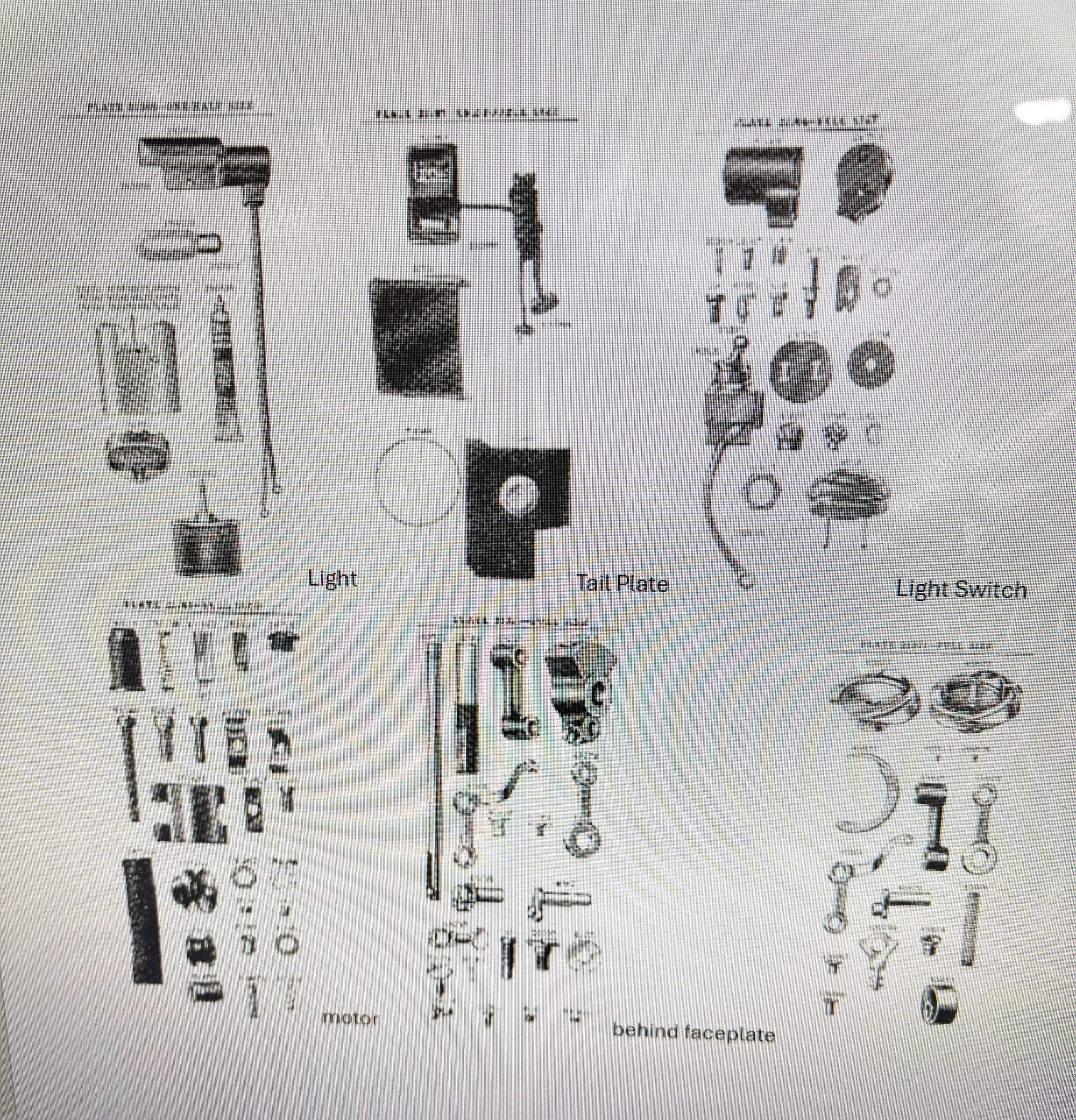

LIGHT ASSEMBLY, LIGHT BULB, TUBE GREASE, FOOT CONTROL (A ceramic resistor or part of a carbon pile speed controller), RECEPTICAL 3 PRONG PLUG, OIL CAN, FOOT CONTROL W/DOUBLE LEAD POWER CORD, TAIL PLATE, MOTOR BELT, BOTTOM COVER PLATE CATCH OIL WITH FELT, LIGHT SOCKET, SOCKET BACK COVER, SET SCREW TO MOUNT LIGHT ASSEMBLY TO MACHINE, SCREW TO PUT BACK COVER ON SOCKET, SCREW TO MOUNT WIRE CLAMP TO LIGHT WIRES UNDER MACHINE, WIRE ENDS IN SOCKET LEFT & RIGHT, WASHER, LIGHT SWITCH, INSULATER FOR PLUG-IN, FELT INSIDE OF LIGHT ASSEMBLY, NUT FOR RECEPTICAL, NUT TO MOUNT LIGHT SWITCH, SCREW TO PLUG-IN, PLUG IN
MOTOR PARTS- BRUSH GUIDE, SPRING, BRASS BRUSH GUIDE, MOTOR CARBON BRUSH, BRUSH CAP, LONG MOTOR SCREW, SCREW TO METAL CLAMP PART CLAMP MOTOR WIRES ON BOTTOM SIDE OF MACHINE, INSULTERS FOR MOTOR WIRE CLAMP 3, LIGHT MOUNTING SCREW, GROMLET, WASHER, PULLEY, SET SCREWS, WASHER, FELT,
PARTS BEHIND FACE PLATE- NEEDLE BAR,NEEDLE BAR GUIDE, CONNECTING LINKAGE, MAIN SHAFT TAKE-UP BUSHING, TAKE-UP LEVER, LINKAGES AND SCREWS, NEEDLE CAMP.
ROTARY PARTS, TAKE-UP PARTS, KEY, CAM, SCREWS.

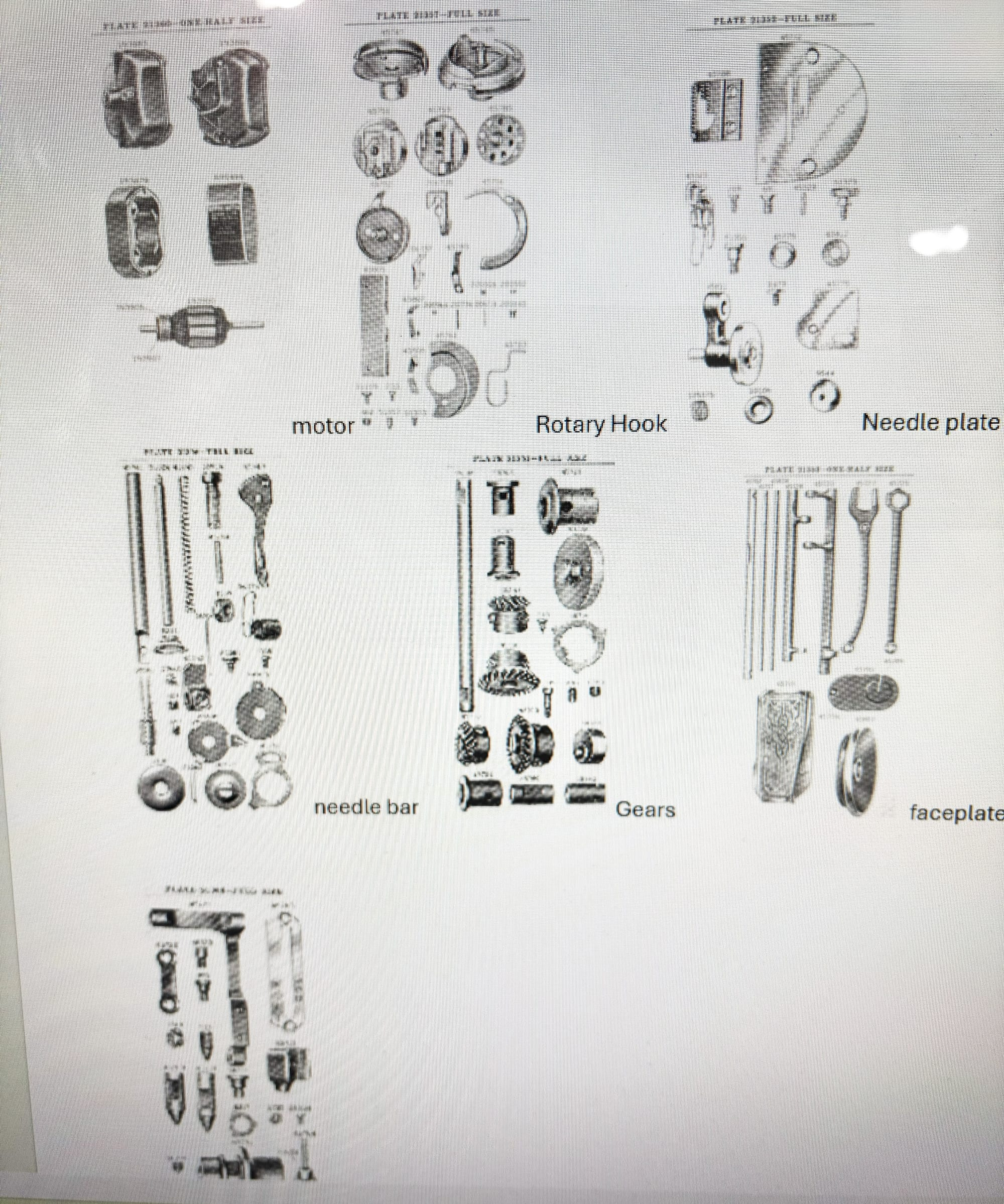

MOTOR PARTS, FRONT AND BACK COVERS, ARMATURE, WINDINGS, MOTOR READINGS SLEEVE.
ROTARY PARTS- BACK COVER PLATE, WIRE SPRING, SCREWS, HOOK, BODY, BOBBIN CASE HOLDER, BOBBIN, BOBBIN CASE PARTS-LATCH, SCREWS,TENSION SPRING, SLIDE PLATE BOTTOM PART.
NEEDLE PLATE-FEEDDOG, FEEDDOG SCREWS, PRESSER FOOT, PRESSER FOOT THUMB SCREW, NEEDLE PLATE SCREWS, BOBBIN WINDER, BOBBIN WINDER SCREWS & WASHERS, RUBBER BOBBIN WINDER RING, SCHOOL BELL THREAD GUIDE PARTS.
PRESSER PARTS- PRESSER BAR, UPPER PRESSER BAR, UPPER PRESSER BAR SPRING, TOP PRESSER BAR TENSION SCREW, PRESSER FOOT LIFT LEVER, LEVER PIN, THREAD TENSION PARTS- BEEHIVE SPRING, PIN, THREADED SPLIT POST, DISCS, GUIDE PLATES, CHECK SPRING, TENSION NUT, SET SCREW MOUNT TENSION.
GEARS- SHAFT, BUSHINGS, CAM, MOTION KNOB, LOCK RING TO MOTION KNOB, HANDWHEEL BUSHING.
LINKAGES, ROCKER BARS LOWER, VERTICAL FORK AND MAIN SHAFT, VERTICAL SHAFT, FACE PLATE, SPOOL PIN COVER, HANDWHEEL.
FEEDDOG ROCKER ARM, THREAD LENGTH REGULATOR PLATE, PLATE SCREWS, PIVOT PINS, REGULATOR LEVER LIKAGE, UPPER CAM TO THREAD LENGTH REGULATOR, STITCH LINGTH LEVER WITH NUT, REGULATOR SCREW AND LOCKING WASHER.
